Technical resources for silicon nanomaterials research
This page provides technical resources for researchers interested in porous silicon and in silicon nanomaterials:
- Instructional videos on preparation, processing, and safety concerns associated with porous silicon
- Engineering diagrams for equipment used in porous silicon research
- Software used to etch and to characterize porous silicon layers
- Companies, Institutes, Government, and Academic Labs who have programmatic interests in porous silicon or related forms of nanophase silicon
- Upcoming meetings of interest to the porous silicon community
- Educational modules associated with the UC San Diego MRSEC that involve porous silicon or related nanomaterials
Videos

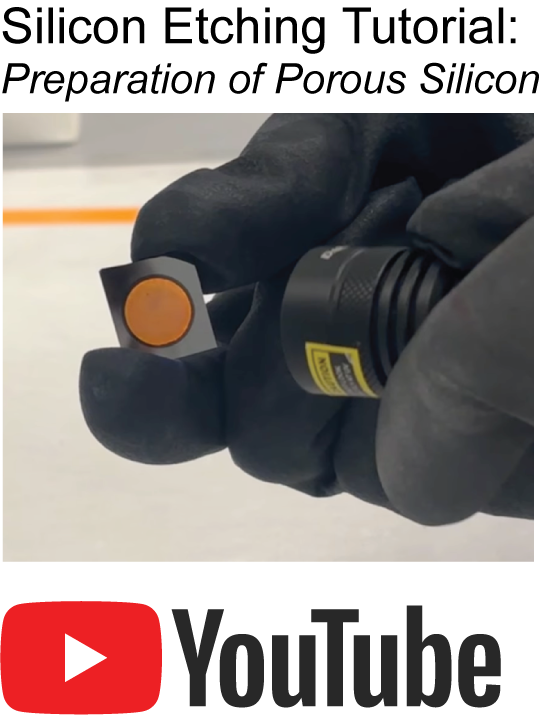

“Etching 101” video: how to make porous silicon
Instructional video made by Gha Young Lee (in the 2015 SSSiN), on the preparation of porous silicon by electrochemial anodization of crystalline silicon wafers in aqueous HF:ethanol electrolytes. Includes tips on cell design, mounting a wafer, leak-checking the cell, safety procedures, and personal protective equipment. The procedure is focused on the preparations given in “Porous Silicon in Practice: Preparation, Characterization, and Applications.” (Wiley-VCH: Weinheim, Germany, 2012).
“Schlenk Line Operation” video: how to set up an airless Schlenk line
Instructional YouTube video “Schlenk Line Operation” made by Roghiye Kazimi and James Fulmer (SSSiN 2019), on the setting up an taking down of a Schlenk line. A Schlenk line is a type of vacuum apparatus that allows the manipulation of air-sensitive compounds. Our group uses it to perform silicon surface modification chemistries such as the ring-opening of cyclic silanes and hydrosilylation, both of which need to be performed in the absence of oxygen and water.
Schematics and Engineering Diagrams
Standard etch cell
PDF file of the top and the base of a Teflon electrochemical cell used for two-electrode anodization of silicon chips. This design incorporates screws that enter from the bottom of the cell. Makes a porous Si layer approximately 1.24 cm in diameter, with 1.2 cm2 of exposed area.
Large etch cell
PDF file of the top and the base of a Teflon electrochemical cell used for two-electrode anodization of silicon chips. The most recent design, this incorporates screws that open from the bottom of the cell. Makes a porous Si layer approximately 3.5 cm in diameter, with 9.6 cm2 of exposed area. Accommodates 2-inch wafers.
Glass top and valve
simple sketch of a glass fixture for sealing the Standard etch cell via an 18mm O-ring. Allows one to perform anaerobic electrochemistry, spectroscopy, or other manipulations of the sample under a controlled atmosphere. Once you etch, clean, and dry your sample, you can then add this top to the Standard etch cell without un-mounting your sample.
Clamp for glass top
an aluminum fixture to hold the above glass top in place in the Standard etch cell.
Software downloads
These programs are provided free of charge to the research community. The author does not warrant their accuracy or stability. Please report any bugs or problems to the author. Detailed descriptions of their use and application can be found in the book “Porous Silicon in Practice (M.J. Sailor, 2012),” available from Wiley-VCH.
Electrochemical Etching Programs
to prepare porous silicon nanoparticles, photonic crystals, and “quantum dot” nanostructures by controlled current (galvanostatic) anodization of silicon wafers.
CAUTION: Preparation of porous silicon uses electrolytes containing aqueous hydrofluoric acid (HF). HF is highly toxic and corrosive, and the user should be familiar with the proper use and handling of HF before attempting to perform procedures employing HF-containing electrolytes. All manipulations of HF should be performed with goggles, a face shield, a rubber chemical apron, and butyl rubber gloves that extend to the elbow.
Keithley2460_Etch_Program_v28, a vi (virtual instrument) for the National Instruments Labview program that drives a Keithley 2460 Sourcemeter (in current source mode). This is an all-digital interface that allows current-controlled anodization (etching of silicon to generate porous silicon) at a data rate of 10 points per second. These programs (contained in a .zip archive) are designed to connect a PC to the Sourcemeter, via either the VISA (ethernet) or USB interfaces. These are National Instruments LABVIEW virtual instrument and library files; you need the National Instruments LABVIEW program loaded on your computer to run them.
The .zip archive contains the following programs:
- (1) Keithley Sourcemeter 2460 setup notes, a Microsoft Word document that gives a bit of guidance on setup.
- (2) Keithley2460_Etch_Program_v28.vi, National Instruments LABVIEW virtual instrument file that drives the Keithley 2460 Sourcemeter.
- (3) Extract Numbers.vi, National Instruments LABVIEW virtual instrument file that is called by the vi in (2).
- (4) a bunch of .llb files (in the instr.lib folder) that are used by the above programs. You probably already have all these files in your National Instruments LABVIEW install.
The above program was written and validated for the Keithley Sourcemeter 2460 but should work on 2450 and related Sourcemeter 2400 series models. Note when you hit the “run” button in the “Keithley2460_Etch_Program_v28” vi, it will ask you to choose an ascii file. This needs to be a text file with a 1-D column of current values (in mA) separated by <cr>. When you hit the “etch” button, it will send these values to the Sourcemeter at a data rate of 10 values per second. An Igor Pro program (WaveformDesigner6) that can generate these waveforms is given below (August 17, 2024).
WaveformDesigner6_3, an Igor Pro (www.wavemetrics.com) program used to design waveforms for input to the LABVIEW vi “Keithley2460_Etch_Program” listed above (August 17, 2024). Note the file will have a .pxp extension which is the “packed experiment” format used by Igor Pro in either Mac or PC versions. The program can generate single layers (“straight etch”), multilayers, rugate filters, Bragg stacks, and “perforated etch” profiles. “Save profile to disk…” will output a .txt file that is a single column of numbers, separated by <cr>, that is readable by the Keithley2460_Etch_Program.
Data Workup and Analysis Programs
Spectra_4_2 (.zip archive) Subroutines written for Igor Pro 9 (64-bit) (www.wavemetrics.com) designed to work up large numbers of (reflectivity or interference) spectra from Ocean Optics (“OceanView”) spectrometers but can load other .txt type files that have signal and wavelength in two separate columns. Improved file handling, capability to perform FFT on selected regions of a spectrum, monitoring of intensity and position of peak in the reflectivity spectrum or in the FFT, integrate between cursors, measure empirical half-life from decays. (July 29, 2024)
SLIM_27_6 (.zip archive) Subroutines written for Igor Pro 9 (64-bit) (www.wavemetrics.com) designed to determine porosity and thickness of a Fabry-Perot layer from the reflectivity spectrum using the Spectroscopic Liquid Infiltration Method (SLIM; see Adv. Funct. Mater. 2007, 17, 1153). User can choose either Bruggeman or Looyenga effective medium models. For porous sililcon samples, the Looyenga model is preferred. Either way, you need to provide an estimate of the refractive index of the material that comprises the skeleton of your porous material. Can feed a spectrum in from the clipboard or from a file. Can load from Ocean Optics (“OceanView”). It has some capability to load other .txt type files, and it can load any spectrum that you can put on the clipboard in the form of two columns (intensity in col 1; wavelength in col 2). (Aug 25, 2023)
Research Community
An incomplete list of academic research groups working in the field of porous silicon and nano-scale silicon.
